Inside the shop floor — machines, parts, checks.
Real photographs from our Chandigarh machining unit: Traub automat operations, Capstan turret setups, turned brass and steel components, and in-process dimensional checks.
Browse the full workshop gallery — machines, turned parts, and quality checks.
14 photos
View

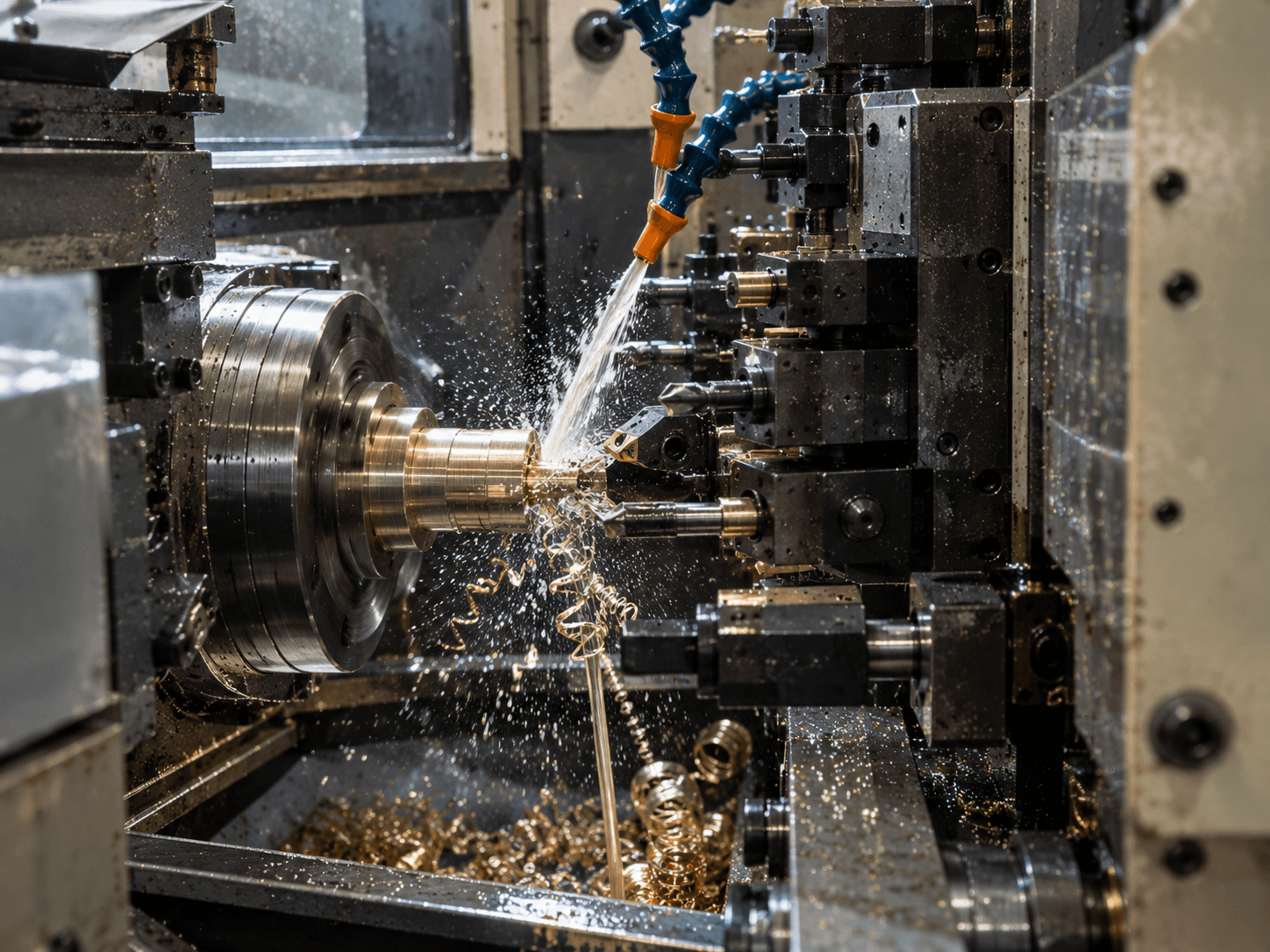

Traub Automat Running
Traub Automat Running
Single-spindle Traub automat machining brass stock under coolant.
View

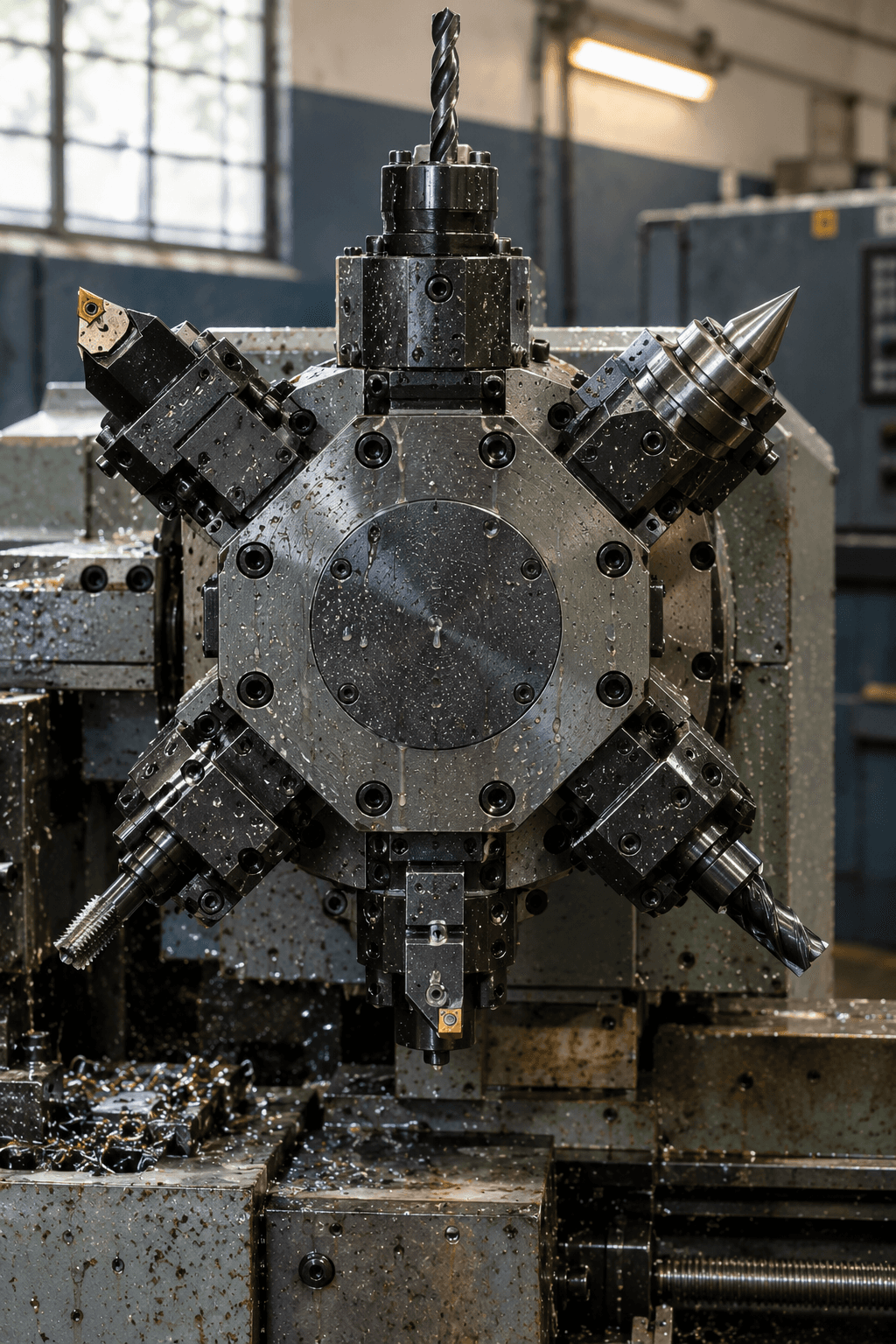

Capstan Turret Setup
Capstan Turret Setup
Multi-station Capstan turret set up for a stepped turning job.
View

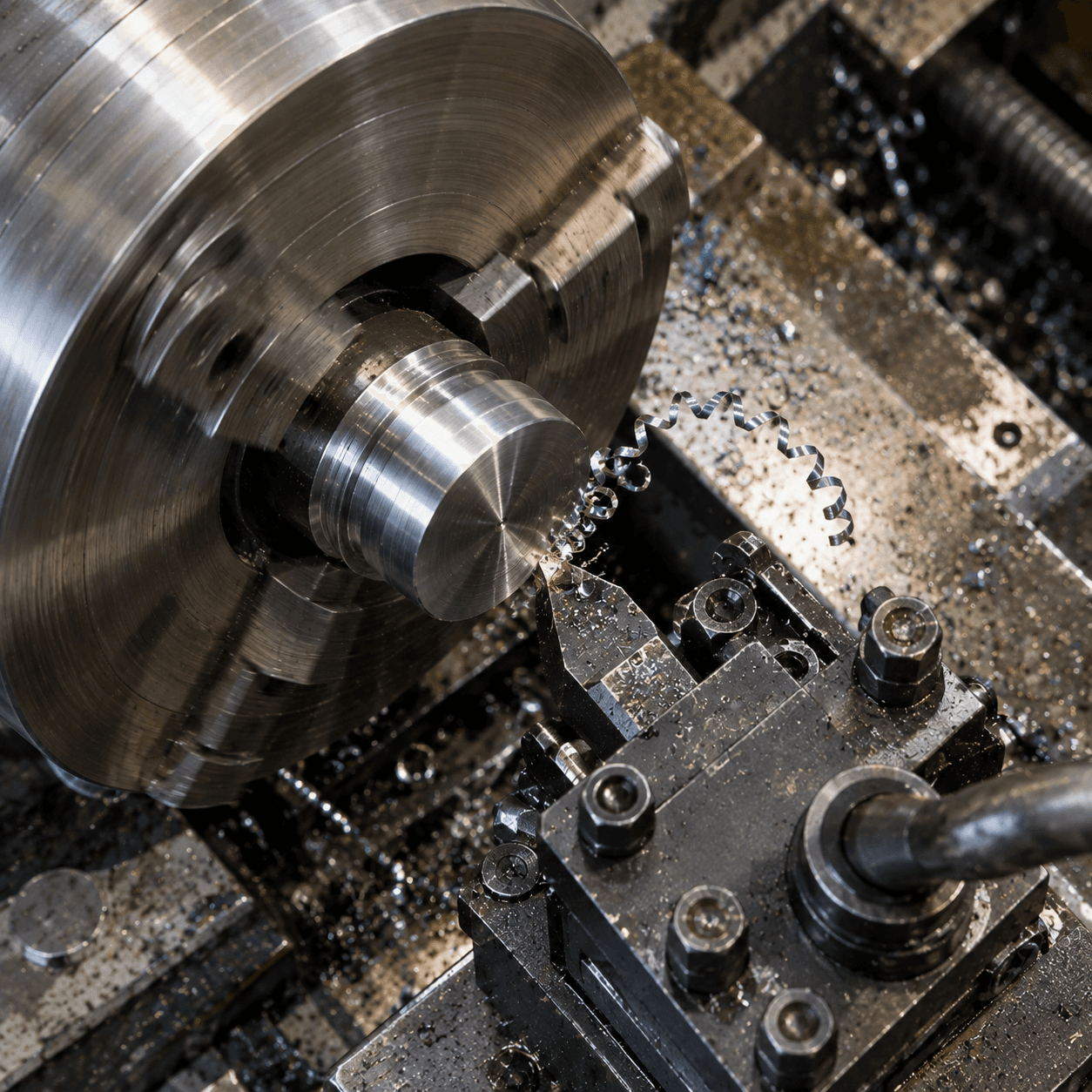

Manual Lathe Facing
Manual Lathe Facing
Kharad lathe facing operation on a custom shaft.
View

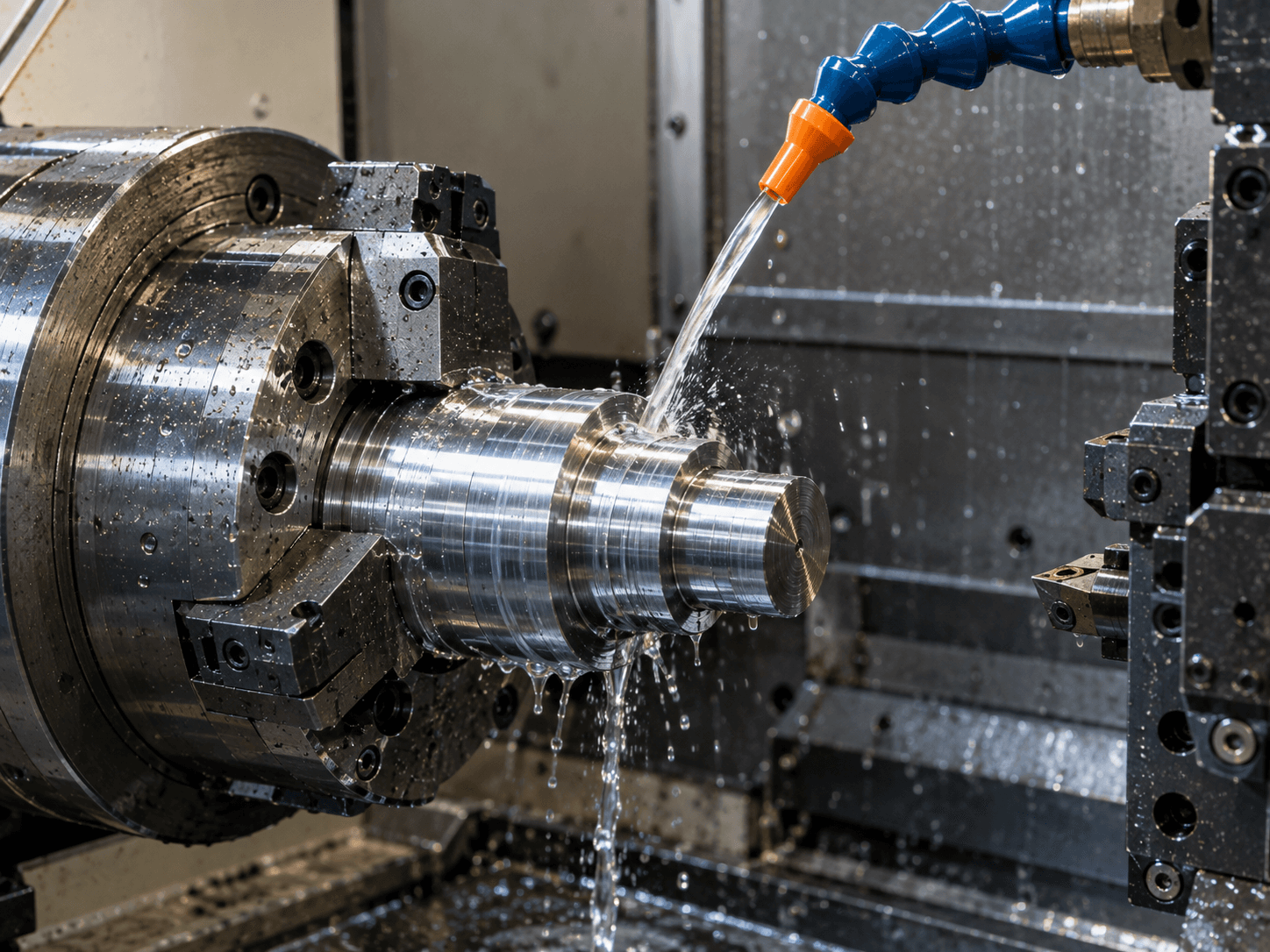

Coolant Flow Close-Up
Coolant Flow Close-Up
Cutting fluid stream over turned steel component on Traub machine.
View

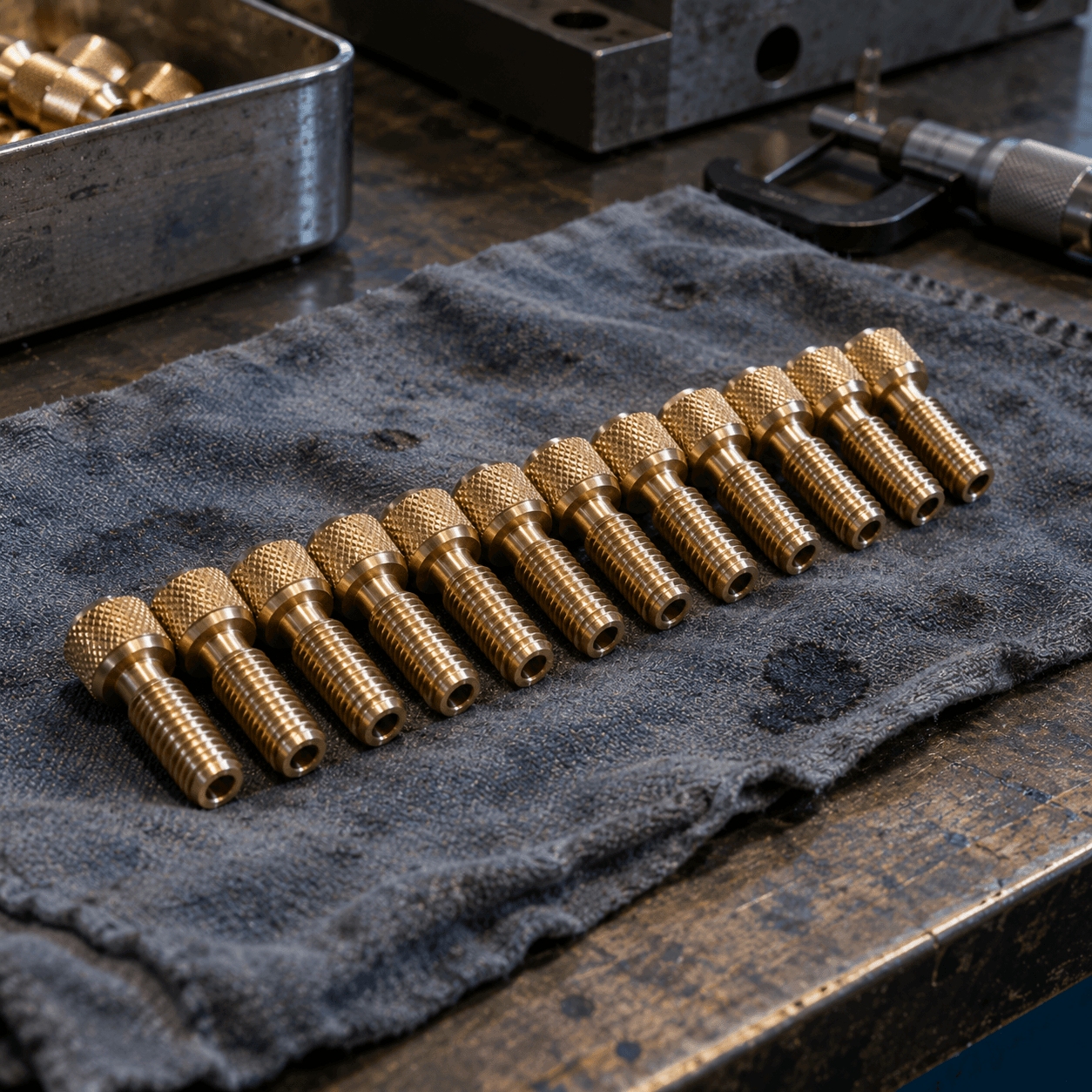

Turned Brass Inserts
Turned Brass Inserts
Batch of turned brass inserts ready for dispatch.
View

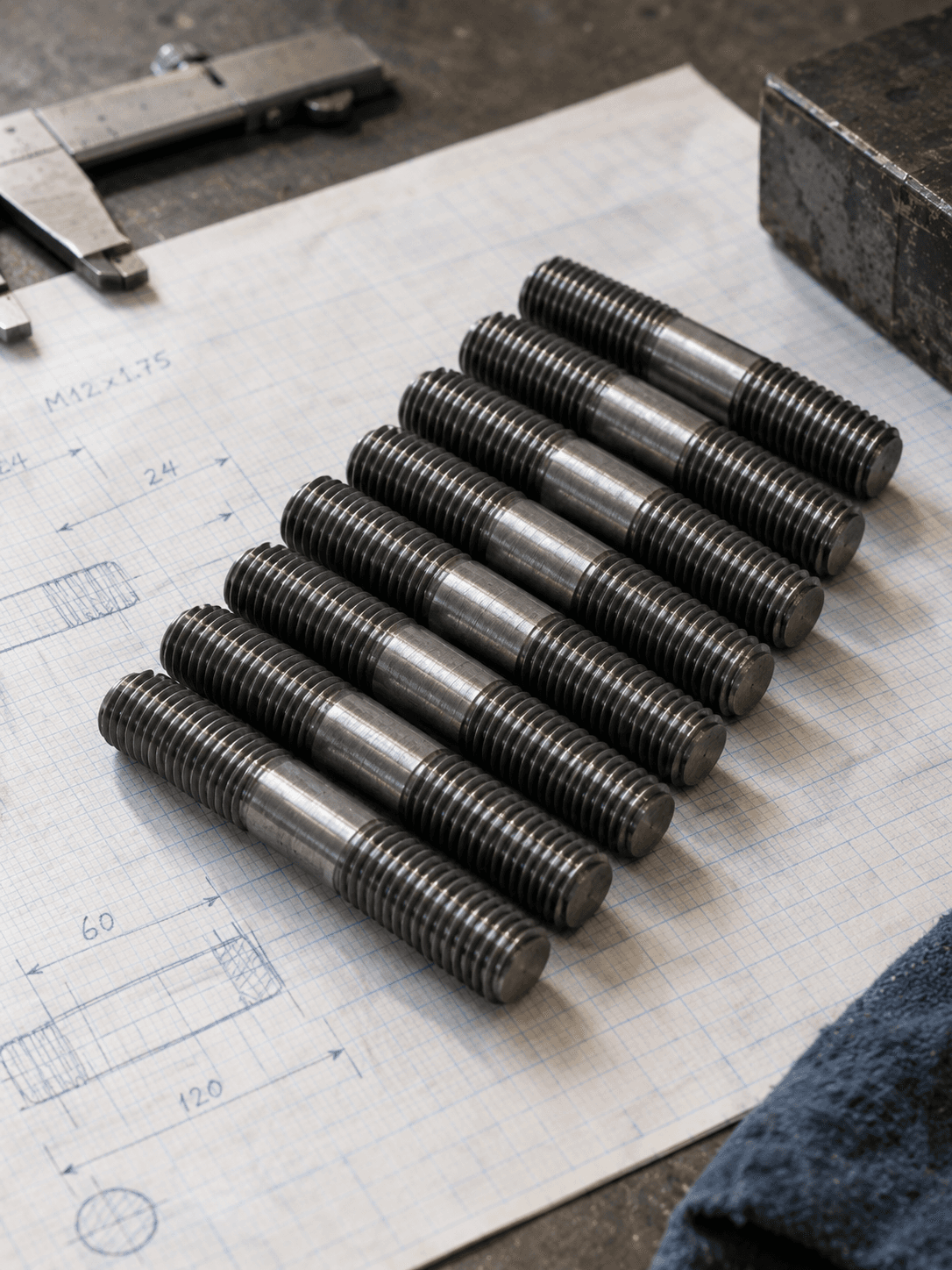

Threaded MS Studs
Threaded MS Studs
External threaded MS studs, batch verified.
View

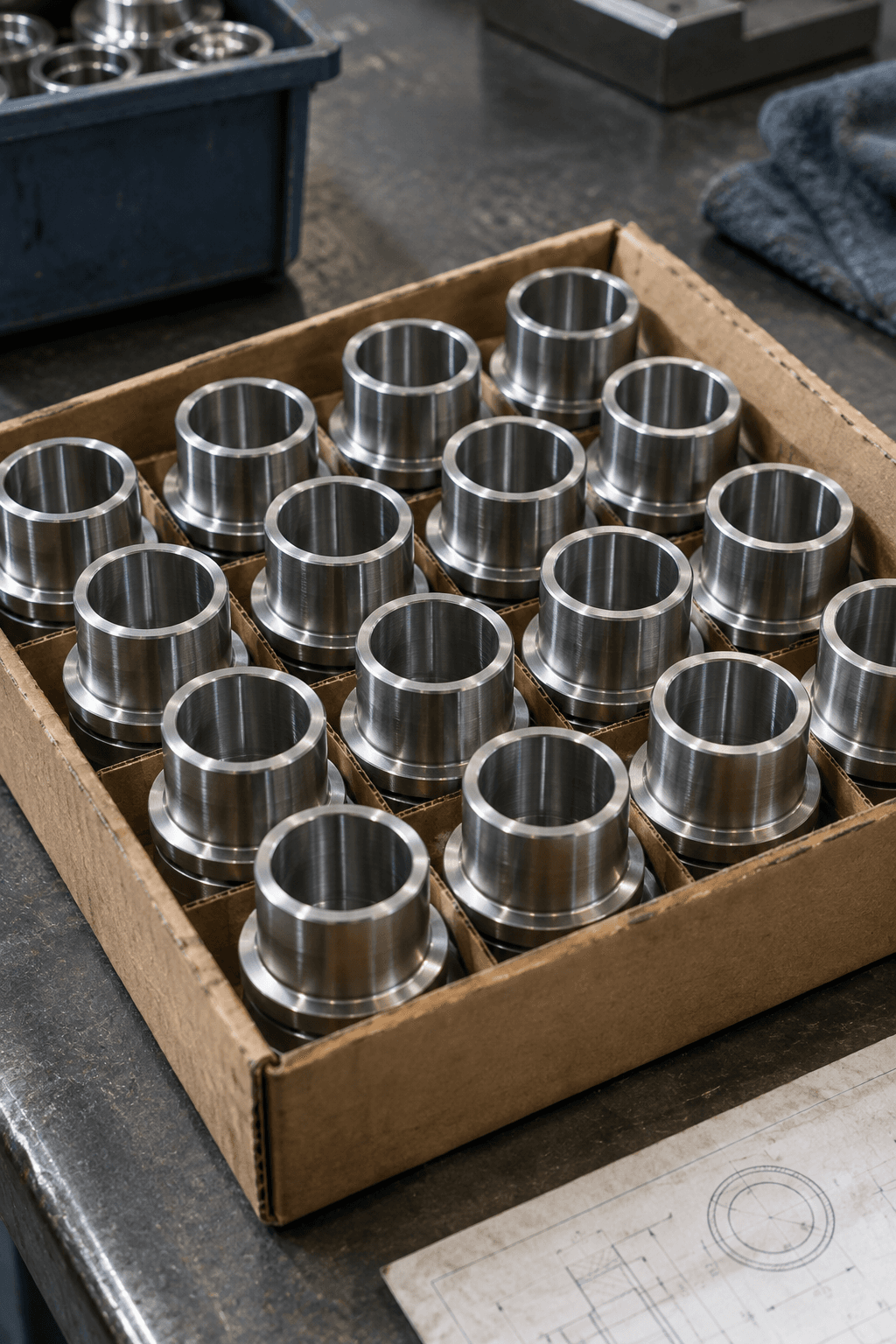

Precision Sleeves
Precision Sleeves
Precision sleeves and bushes machined to ±0.02mm.
View

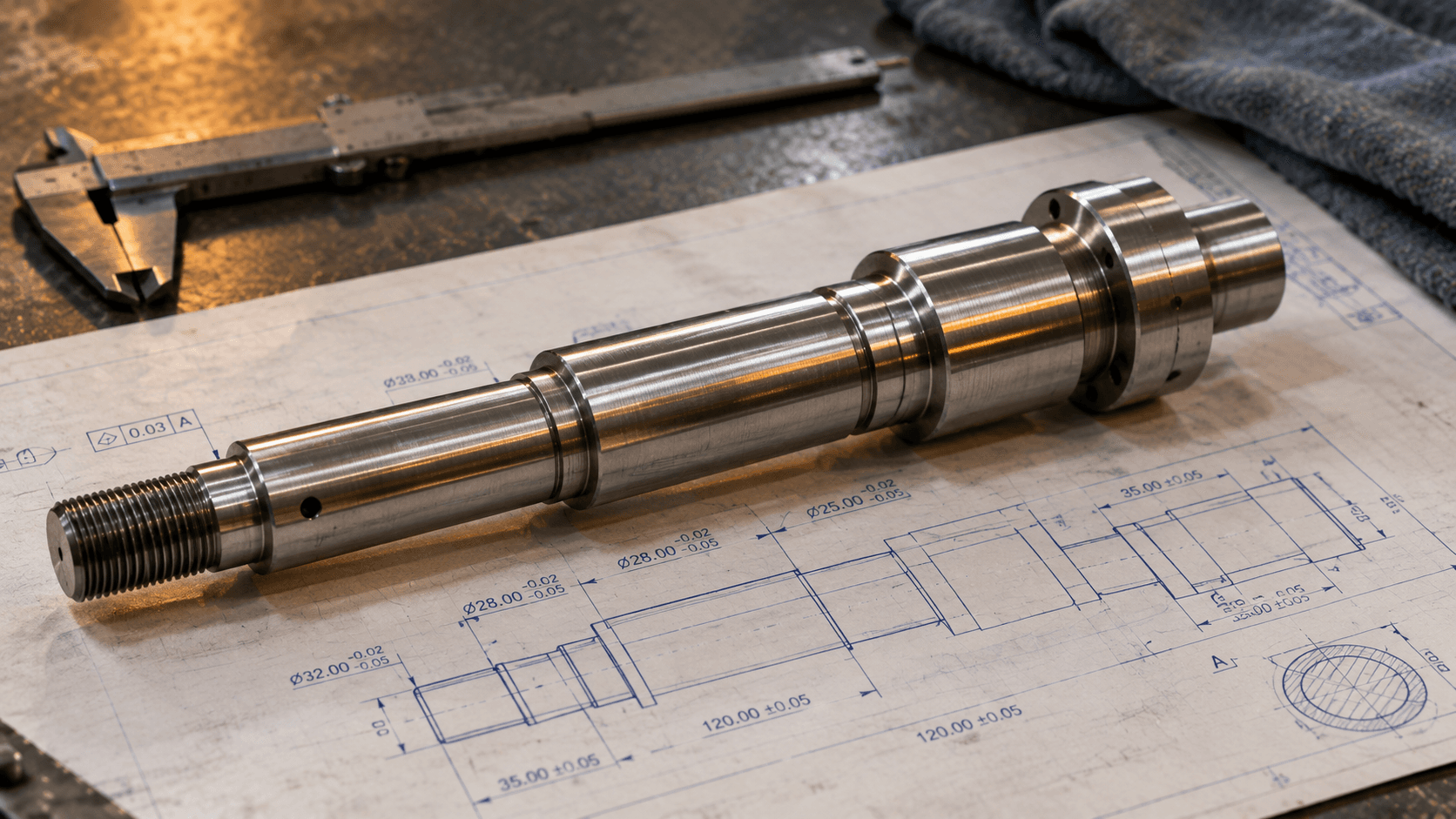

Stepped Shafts
Stepped Shafts
Stepped turning on stainless steel shaft.
View

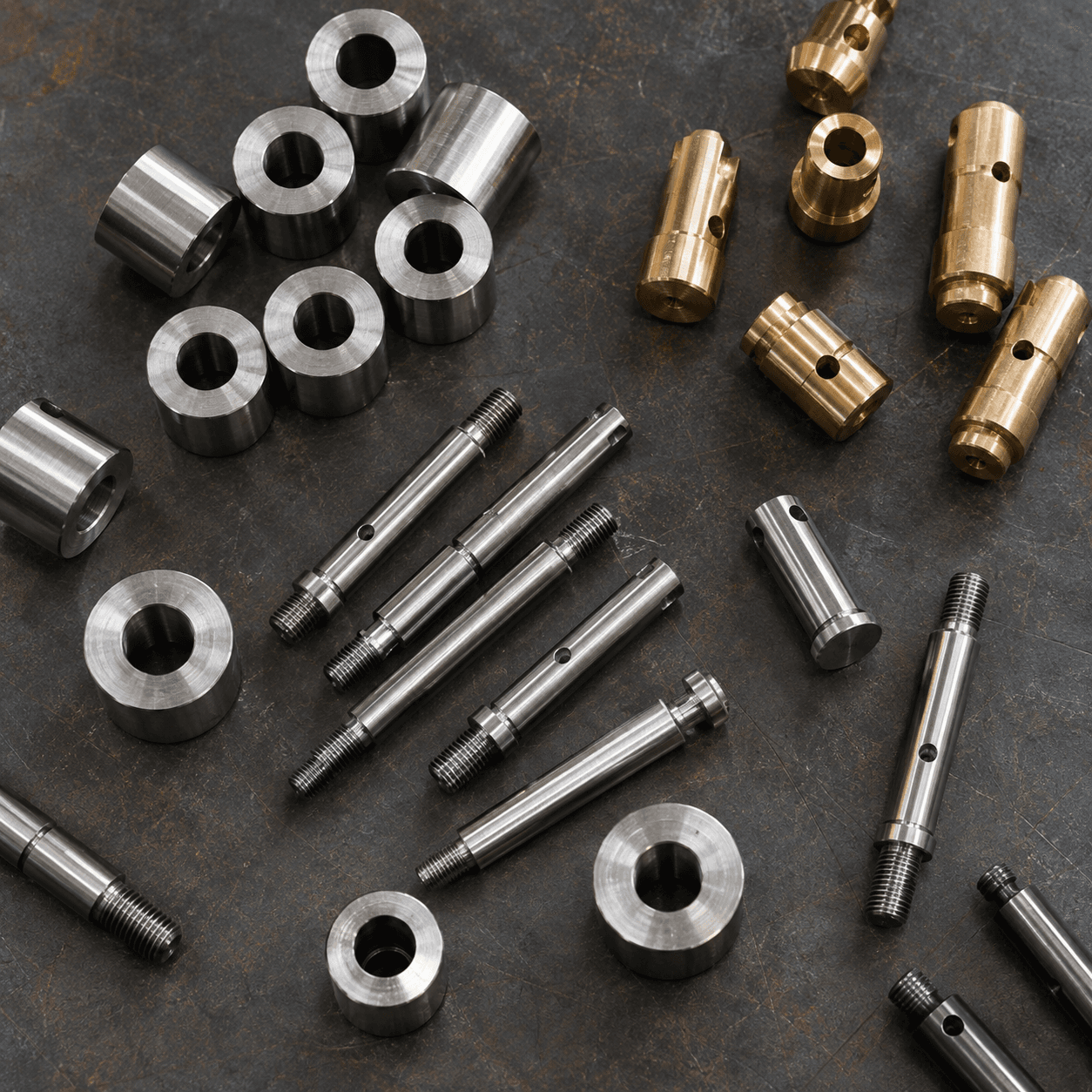

Spacers & Pins
Spacers & Pins
Mixed batch of spacers and control pins.
View

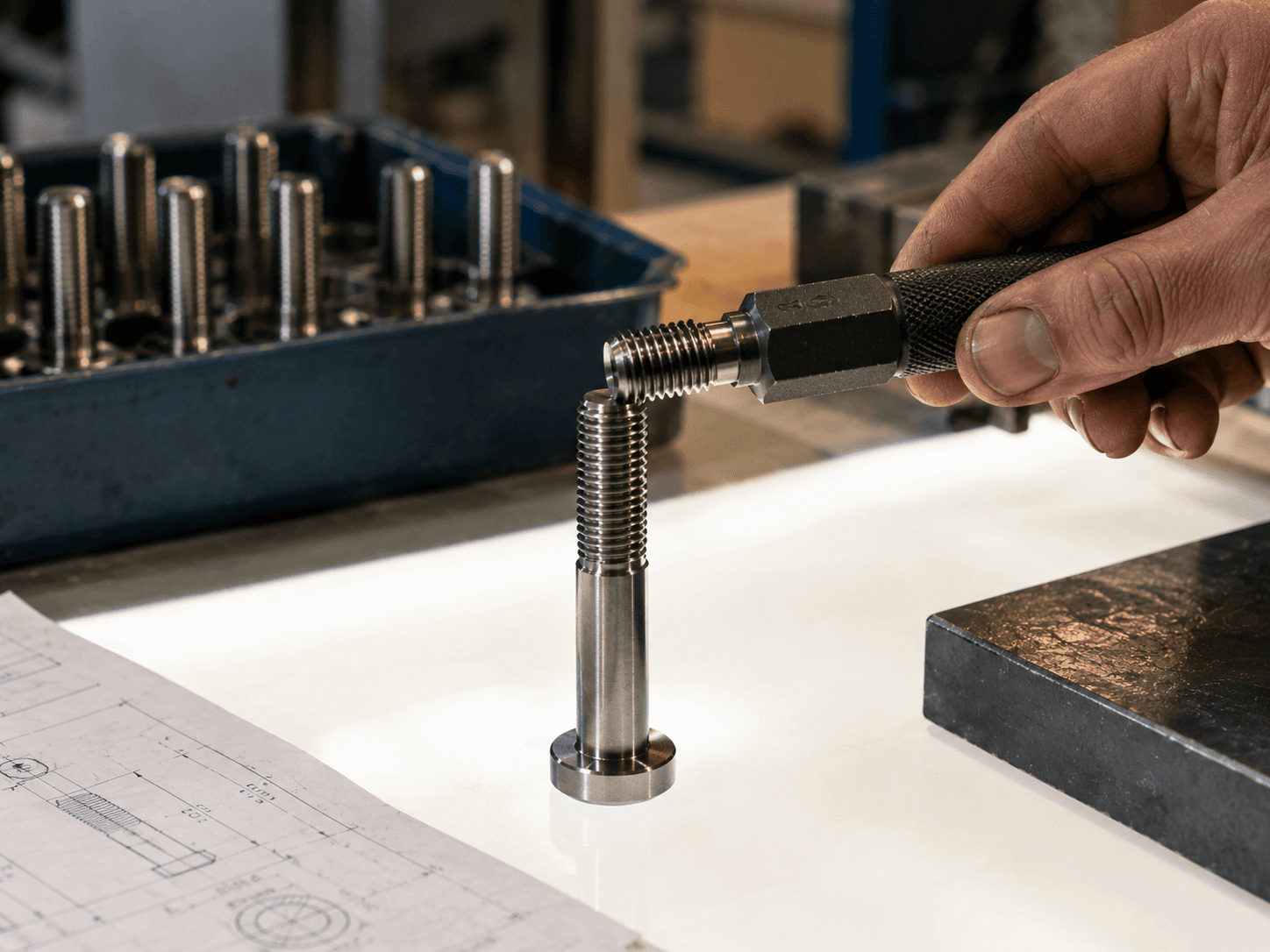

Thread Gauging
Thread Gauging
Thread gauge verification on finished metric studs.
View

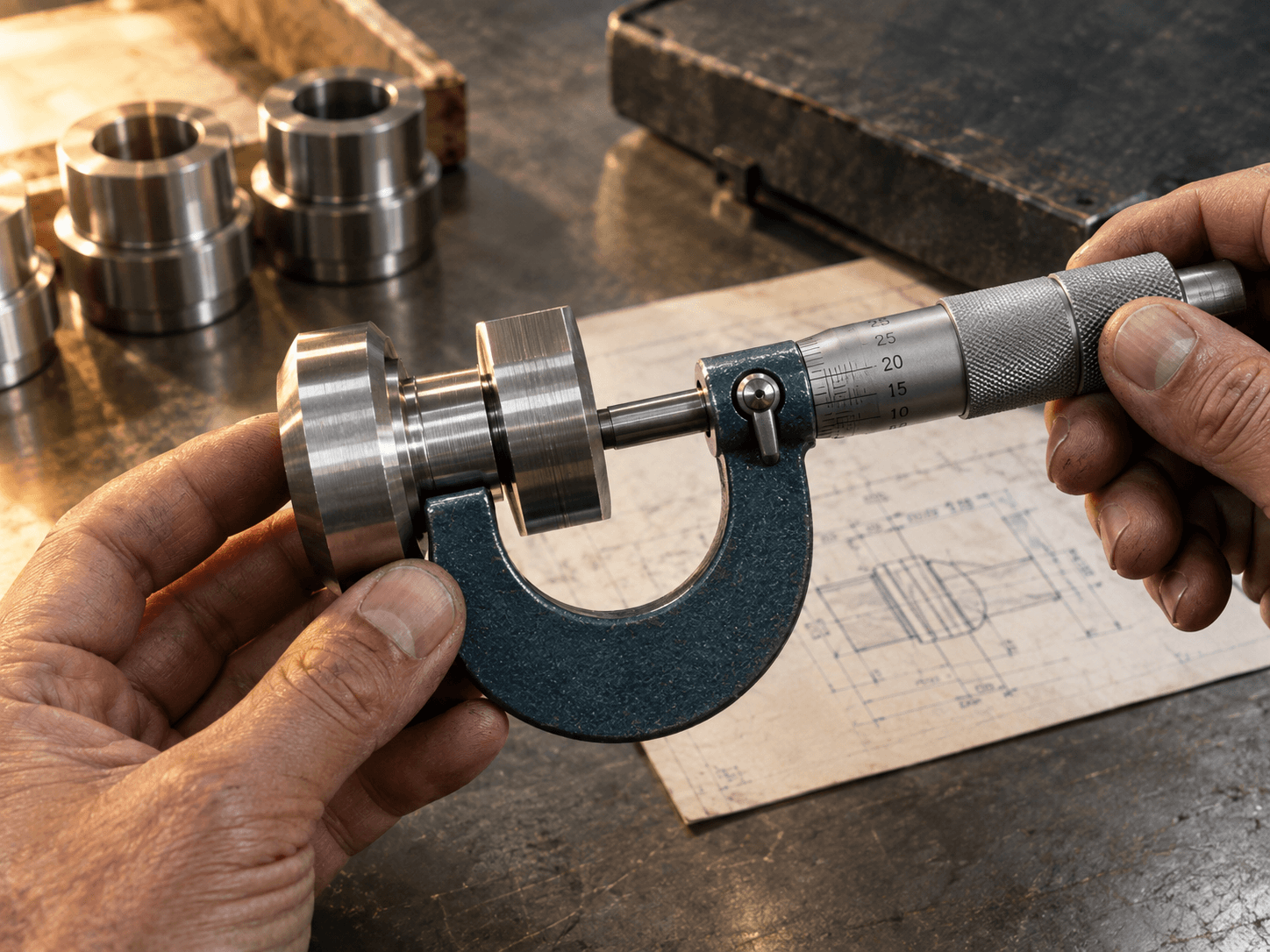

Micrometer Check
Micrometer Check
Outside micrometer check on freshly turned component.
View

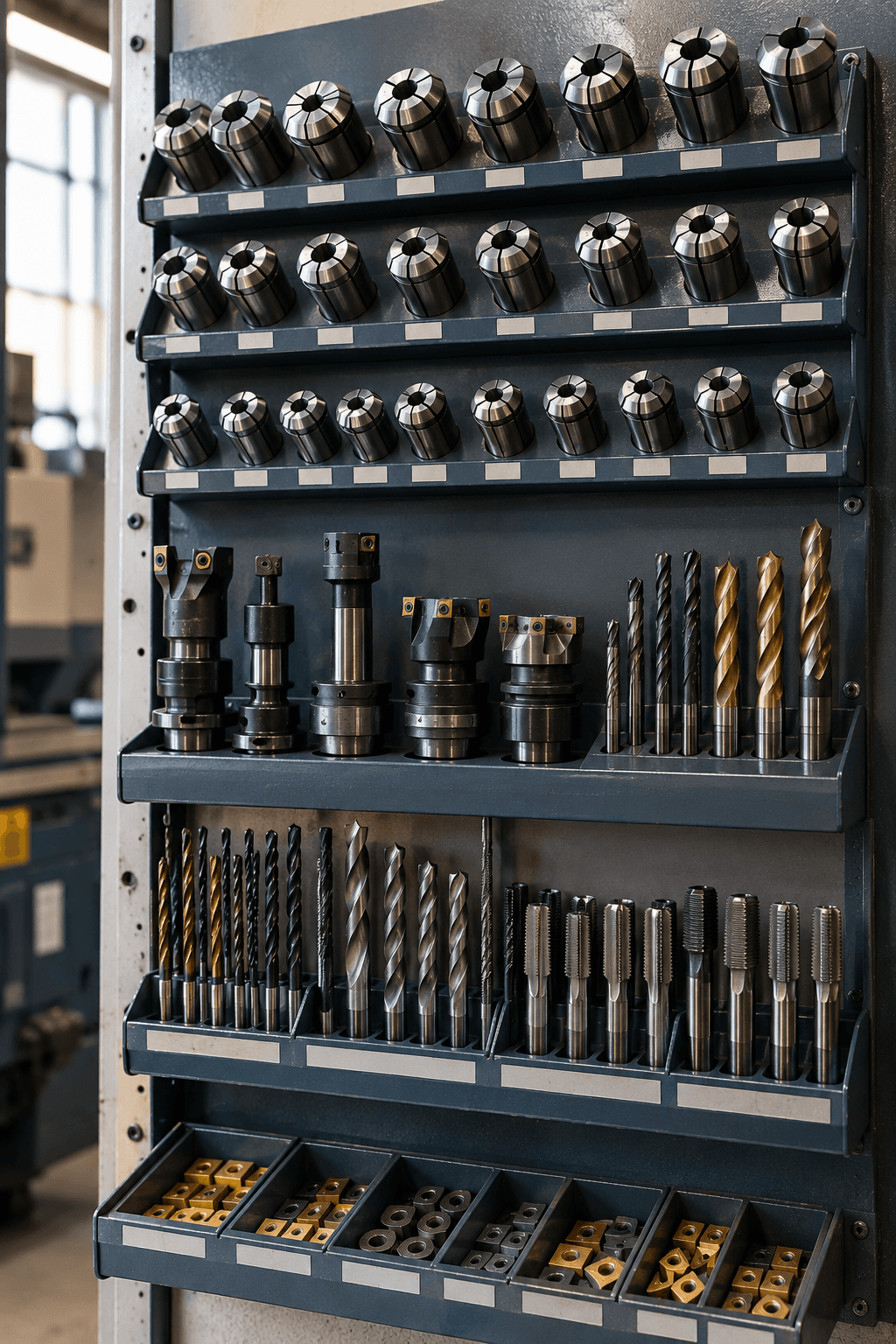

Tooling Rack
Tooling Rack
Organised collets, inserts, and tooling rack.
View

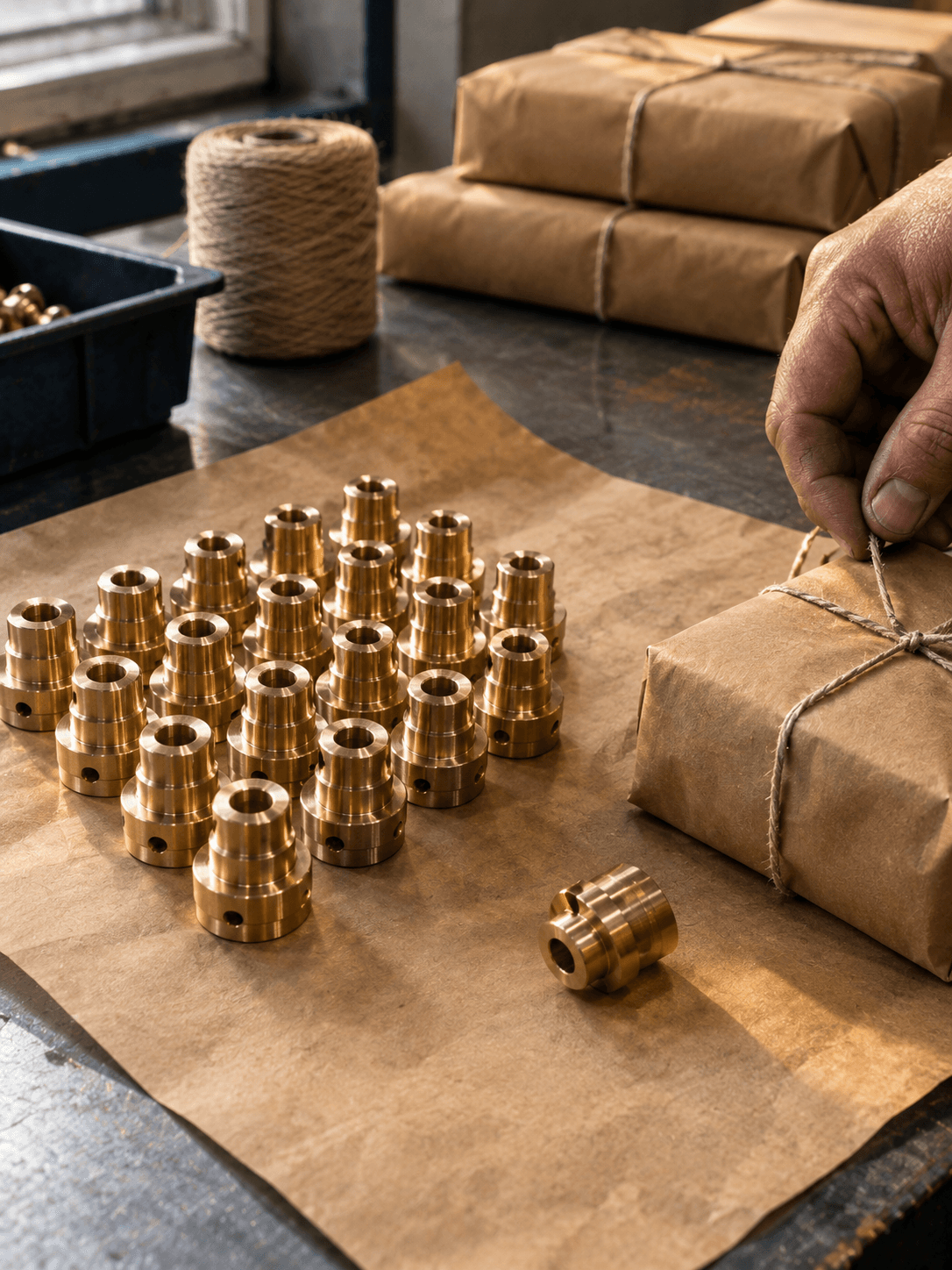

Dispatch Packaging
Dispatch Packaging
Deburred components counted and packed for dispatch.
View

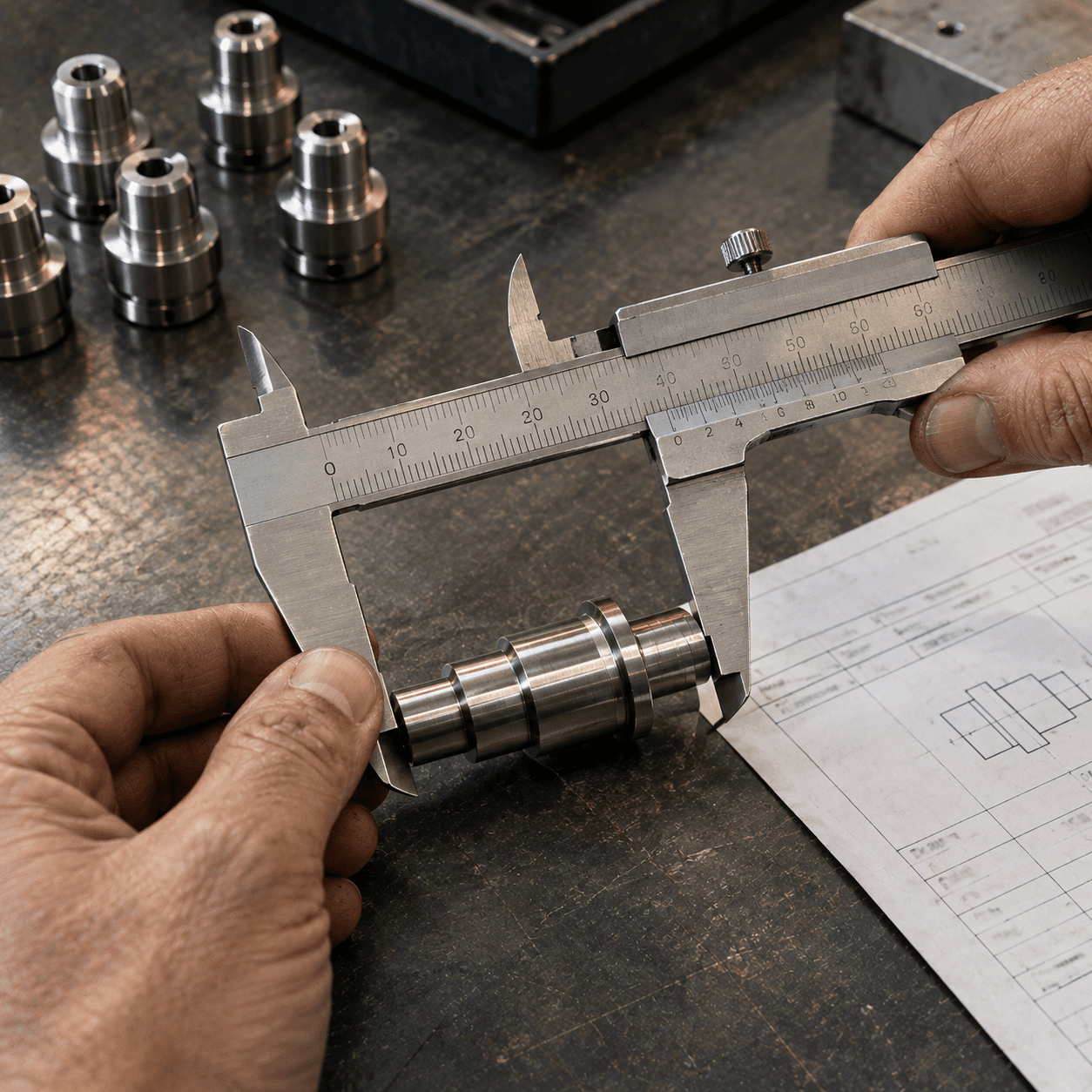

Vernier Check Station
Vernier Check Station
Vernier caliper check at inspection station.
Send the drawing — we'll send a quote.
Every part in this gallery started as a drawing or sample. Send yours and we'll come back with material review, machine fit, and pricing.
- Real photos — no stock imagery
- Tolerance-verified batches
- Direct workshop reply
